Applications and Solving Right Triangles
Article objectives
Throughout its early development, trigonometry was often used as a means of indirect measurement, e.g. determining large distances or lengths by using measurements of angles and small, known distances. Today, trigonometry is widely used in physics, astronomy, engineering, navigation, surveying, and various fields of mathematics and other disciplines. In this section we will see some of the ways in which trigonometry can be applied. Your calculator should be in degree mode for these examples.
Example 1
A person stands 150 ft away from a flagpole and measures an angle of elevation of 32º from his horizontal line of sight to the top of the flagpole. Assume that the person’s eyes are a vertical distance of 6 ft from the ground. What is the height of the flagpole?
Solution: The picture on the right describes the situation. We see that the height of the flagpole is h+6 ft, where
$$ \frac{h} {150} = tan 32^\circ ⇒ h = 150 tan 32^\circ = 150 (0.6249) = 94 .$$
How did we know that tan 32º = 0.6249? By using a calculator. And since none of the numbers we were given had decimal places, we rounded off the answer for h to the nearest integer. Thus, the height of the flagpole is h+6 = 94+6 = 100 ft.
Example 2
A person standing 400 ft from the base of a mountain measures the angle of elevation from the ground to the top of the mountain to be 25º. The person then walks 500 ft straight back and measures the angle of elevation to now be 20º. How tall is the mountain?
Solution: We will assume that the ground is flat and not inclined relative to the base of the mountain. Let h be the height of the mountain, and let x be the distance from the base of the mountain to the point directly beneath the top of the mountain, as in the picture on the right. Then we see that
$$ \frac{h}{x+400} = tan 25^\circ ⇒ h = (x+400) tan 25^\circ , \text{and}$$ $$ \frac{h} {x+400+500} = tan 20^\circ ⇒ h = (x+900) tan 20^\circ , \text{so}$$
(x+400) tan 25º = (x+900) tan 20º, since they both equal h. Use that equation to solve for x:
$$ x tan 25^\circ − x tan 20^\circ = 900 tan 20^\circ − 400 tan 25^\circ ⇒ x = \frac {900 tan 20^\circ − 400 tan 25^\circ} {tan 25^\circ − tan 20^\circ}$$ $$ = 1378 ft $$ Finally, substitute x into the first formula for h to get the height of the mountain: $$ h = (1378+400) tan 25^\circ = 1778 (0.4663) = 829 ft $$
Example 3
A blimp 4280 ft above the ground measures an angle of depression of 24º from its horizontal line of sight to the base of a house on the ground. Assuming the ground is flat, how far away along the ground is the house from the blimp?
Solution: Let x be the distance along the ground from the blimp to the house, as in the picture to the right. Since the ground and the blimp’s horizontal line of sight are parallel, we know from elementary geometry that the angle of elevation θ from the base of the house to the blimp is equal to the angle of depression from the blimp to the base of the house, i.e. θ = 24º. Hence,
$$ \frac{4280}{x} = tan 24^\circ ⇒ x = \frac{4280} {tan 24^\circ} = 9613 ft. $$
Example 4
An observer at the top of a mountain 3 miles above sea level measures an angle of depression of 2.23º to the ocean horizon. Use this to estimate the radius of the earth.
Solution: We will assume that the earth is a sphere. Let r be the radius of the earth. Let the point A represent the top of the mountain, and let H be the ocean horizon in the line of sight from A, as in Figure 4. Let O be the center of the earth, and let B be a point on the horizontal line of sight from A (i.e. on the line perpendicular to \(\overline{OA}\)). Let θ be the angle \(\angle\)AOH. Since A is 3 miles above sea level, we have OA = r +3. Also, OH = r. Now since \(\overline{AB}\) ⊥ \(\overline{OA}\), we have \(\angle\)OAB = 90º, so we see that \(\angle\)OAH = 90º −2.23º = 87.77º. We see that the line through A and H is a tangent line to the surface of the earth (considering the surface as the circle of radius r through H as in the picture). Also, we see that \(\overline{AH}\) ⊥ \(\overline{OH}\) and hence \(\angle\)OHA = 90º. Since the angles in the triangle ∆OAH add up to 180º, we have θ = 180º −90º −87.77º = 2.23º. Thus,
$$cos θ = \frac{OH}{OA} = \frac{r}{r+3} ⇒ \frac{r}{r+3} = cos 2.23^\circ ,$$
so solving for r we get $$ r = (r + 3) cos 2.23^\circ ⇒ r − r cos 2.23^\circ = 3 cos 2.23^\circ$$ $$ ⇒ r = \frac{3 cos 2.23^\circ}{1 − cos 2.23^\circ}$$ $$ ⇒ r = 3958.3\text{ miles }.$$
Note: This answer is very close to the earth’s actual (mean) radius of 3956.6 miles.
Example 5
As another application of trigonometry to astronomy, we will find the distance from the earth to the sun. Let O be the center of the earth, let A be a point on the equator, and let B represent an object (e.g. a star) in space, as in the picture on the right. If the earth is positioned in such a way that the angle \(\angle\)OAB = 90º, then we say that the angle α =\(\angle\)OBA is the equatorial parallax of the object. The equatorial parallax of the sun has been observed to be approximately α = 0.00244º. Use this to estimate the distance from the center of the earth to the sun.
Solution: Let B be the position of the sun. We want to find the length of \(\overline{OB}\). We will use the actual radius of the earth, mentioned at the end of Example 4, to get OA = 3956.6 miles. Since \(\angle\)OAB = 90º, we have
$$ \frac{OA}{OB} = sin α ⇒ OB = \frac{OA}{sin α} = \frac{3956.6}{sin 0.00244^\circ} = 92908394 ,$$
so the distance from the center of the earth to the sun is approximately 93 million miles . Note: The earth’s orbit around the sun is an ellipse, so the actual distance to the sun varies.
In the above example we used a very small angle (0.00244º). A degree can be divided into smaller units: a minute is one-sixtieth of a degree, and a second is one-sixtieth of a minute. The symbol for a minute is ′ and the symbol for a second is ′′. For example, 4.5º = 4º 30′. And 4.505º = 4º 30′ 18′′:
$$ 4^\circ 30′ 18′′ = 4 + \frac{30} {60} + \frac {18}{3600} degrees = 4.505^\circ $$
In Example 5 we used α = 0.00244º ≈ 8.8′′, which we mention only because some angle measurement devices do use minutes and seconds.
Example 6

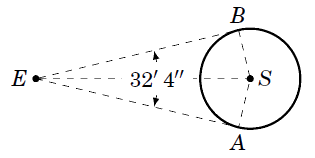

An observer on earth measures an angle of 32′ 4′′ from one visible edge of the sun to the other (opposite) edge, as in the picture on the right. Use this to estimate the radius of the sun.
Solution: Let the point E be the earth and let S be the center of the sun. The observer’s lines of sight to the visible edges of the sun are tangent lines to the sun’s surface at the points A and B. Thus, \(\angle\)EAS = \(\angle\)EBS = 90º. The radius of the sun equals AS. Clearly AS = BS. So since EB = EA (why?), the triangles ∆EAS and ∆EBS are similar. Thus, \(\angle\)AES = \(\angle\)BES = \(\frac{1}{2}\) \(\angle\)AEB = \(\frac{1}{2}\) (32′ 4′′) = 16′ 2′′ = (16/60)+(2/3600) = 0.26722º.
Now, ES is the distance from the surface of the earth (where the observer stands) to the center of the sun. In Example 5 we found the distance from the center of the earth to the sun to be 92,908,394 miles. Since we treated the sun in that example as a point, then we are justified in treating that distance as the distance between the centers of the earth and sun. So ES = 92908394 − radius of earth = 92908394−3956.6 = 92904437.4 miles. Hence,
$$ sin( \angle{AES} ) = \frac{AS}{ES} ⇒ AS = ES sin 0.26722^\circ = (92904437.4) sin 0.26722^\circ = 433,293\text{ miles }$$
Note: This answer is close to the sun’s actual (mean) radius of 432,200 miles.
You may have noticed that the solutions to the examples we have shown required at least one right triangle. In applied problems it is not always obvious which right triangle to use, which is why these sorts of problems can be difficult. Often no right triangle will be immediately evident, so you will have to create one. There is no general strategy for this, but remember that a right triangle requires a right angle, so look for places where you can form perpendicular line segments. When the problem contains a circle, you can create right angles by using the perpendicularity of the tangent line to the circle at a point with the line that joins that point to the center of the circle. We did exactly that in Examples 4, 5, and 6.
Example 7
The machine tool diagram on the right shows a symmetric V-block, in which one circular roller sits on top of a smaller circular roller. Each roller touches both slanted sides of the V-block. Find the diameter d of the large roller, given the information in the diagram.
Solution: The diameter d of the large roller is twice the radius OB, so we need to find OB. To do this, we will show that ∆OBC is a right triangle, then find the angle \(\angle\)BOC, and then find BC. The length OB will then be simple to determine. Since the slanted sides are tangent to each roller, \(\angle\)ODA = \(\angle\)PEC = 90º. By symmetry, since the vertical line through the centers of the rollers makes a 37º angle with each slanted side, we have \(\angle\)OAD = 37º. Hence, since ∆ODA is a right triangle, \(\angle\)DOA is the complement of \(\angle\)OAD. So \(\angle\)DOA = 53º. Since the horizontal line segment BC is tangent to each roller, \(\angle\)OBC = \(\angle\)PBC = 90º. Thus, ∆OBC is a right triangle. And since \(\angle\)ODA = 90º, we know that ∆ODC is a right triangle. Now, OB = OD (since they each equal the radius of the large roller), so by the Pythagorean Theorem we have BC = DC:
$$ BC^2 = OC^2 − OB^2 = OC^2 − OD^2 = DC^2 ⇒ BC = DC$$
Thus, ∆OBC and ∆ODC are congruent triangles (which we denote by ∆OBC \(\cong{}\)∆ODC), since their corresponding sides are equal. Thus, their corresponding angles are equal. So in particular, \(\angle\)BOC =\(\angle\)DOC. We know that \(\angle\)DOB =\(\angle\)DOA = 53º. Thus,
$$ 53^\circ = \angle{DOB} = \angle{BOC} + \angle{DOC} =\angle{BOC} + \angle{BOC} = 2\angle{BOC} ⇒ \angle{BOC} = 26.5^\circ .$$
Likewise, since BP = EP and \(\angle\)PBC = \(\angle\)PEC = 90º, ∆BPC and ∆EPC are congruent right triangles. Thus, BC = EC. But we know that BC = DC, and we see from the diagram that EC+DC = 1.38. Thus, BC+BC = 1.38 and so BC = 0.69. We now have all we need to find OB:
$$ \frac{BC}{OB} = tan \angle{BOC} ⇒ OB = \frac{BC}{tan \angle{BOC}} = \frac{0.69}{tan 26.5^\circ} = 1.384 $$
Hence, the diameter of the large roller is d = 2×OB = 2(1.384) = 2.768
Example 8
A slider-crank mechanism is shown in Figure 8 below. As the piston moves downward the connecting rod rotates the crank in the clockwise direction, as indicated.
The point A is the center of the connecting rod’s wrist pin and only moves vertically. The point B is the center of the crank pin and moves around a circle of radius r centered at the point O, which is directly below A and does not move. As the crank rotates it makes an angle θ with the line \(\overline{OA}\). The instantaneous center of rotation of the connecting rod at a given time is the point C where the horizontal line through A intersects the extended line through O and B. From Figure 8 we see that \(\angle\)OAC = 90º, and we let a = AC, b = AB, and c = BC. Additionally, one can show that for 0º < θ < 90º,
$$ c = \frac{\sqrt{b^2 − r^2 (sin θ)^2}}{cos θ} \text{ and } a = r sin θ + \sqrt{b^2 − r^2 (sin θ)2} tan θ .$$
For some problems it may help to remember that when a right triangle has a hypotenuse of length r and an acute angle θ, as in the picture on the right, the adjacent side will have length r cos θ and the opposite side will have length r sin θ. You can think of those lengths as the horizontal and vertical “components” of the hypotenuse. Notice in the above right triangle that we were given two pieces of information: one of the acute angles and the length of the hypotenuse. From this we determined the lengths of the other two sides, and the other acute angle is just the complement of the known acute angle. In general, a triangle has six parts: three sides and three angles. Solving a triangle means finding the unknown parts based on the known parts. In the case of a right triangle, one part is always known: one of the angles is 90º.
Example 9
Solve the right triangle in Figure 10 using the given information:
(a) c = 10, A = 22º
Solution: The unknown parts are a, b, and B. Solving yields:
$$a = c sin A = 10 sin 22^\circ = 3.75$$
$$b = c cos A = 10 cos 22^\circ = 9.27$$
$$B = 90^\circ − A = 90^\circ − 22^\circ = 68^\circ$$
(b) b = 8, A = 40^\circ
Solution: The unknown parts are a, c, and B. Solving yields:
$$ \frac{a}{b} = tan A ⇒ a = b tan A = 8 tan 40^\circ = 6.71$$
$$ \frac{b}{c} = cos A ⇒ c = \frac{b}{cos A} = \frac{8}{cos 40^\circ} = 10.44$$
$$ B = 90^\circ − A = 90^\circ − 40^\circ = 50^\circ $$
(c) a = 3, b = 4
Solution: The unknown parts are c, A, and B. By the Pythagorean Theorem,
$$ c = \sqrt{a^2 + b^2} = \sqrt{3^2 + 4^2} = \sqrt{25} = 5 .$$
Now, tan A = \(\frac{a}{b}\) = \(\frac{3}{4}\) = 0.75. So how do we find A? There should be a key labeled \(\boxed{tan^{−1}}\) on your calculator, which works like this: give it a number x and it will tell you the angle θ such that tan θ = x. In our case, we want the angle A such that tan A = 0.75:
Enter: 0.75 Press: \(\boxed{tan^{−1}}\) Answer: 36.86989765
This tells us that A = 36.87º, approximately. Thus B = 90º − A = 90º −36.87º = 53.13º. Note: The \(\boxed{sin^{−1}}\) and \(\boxed{cos^{−1}}\) keys work similarly for sine and cosine, respectively. These keys use the inverse trigonometric functions.
